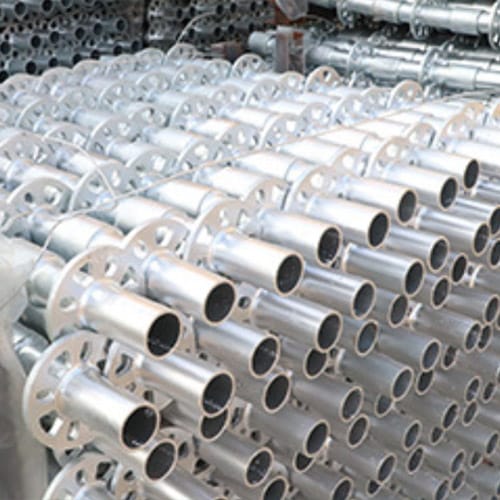

Scaffolding Ring Lock – Core Connector for Cuplock Scaffolding
Product Description

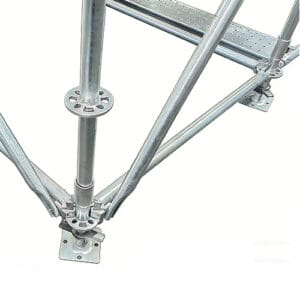

The Scaffolding Ring Lock is the essential disc connector designed specifically for Cuplock Scaffolding (also known as Disc Scaffolding). As the central rosette component, it enables secure and rapid connections between vertical standards, horizontal ledgers, and diagonal braces. Its multi-hole disc structure allows standardized assembly and stable load transfer, making it a key element in the rigidity and safety of the entire Cuplock system.
Made from high-strength steel and processed with precision cutting or forging, the Scaffolding Ring Lock offers excellent durability, accurate hole positioning, and reliable resistance to impact, deformation, and corrosion. When used with Cuplock wedge pins, it forms a tight and reliable joint that supports efficient installation and long-term service performance.
Widely used in building construction, bridge erection, tunnel support, high-formwork shoring, and industrial maintenance platforms, the Scaffolding Ring Lock ensures that the Cuplock system maintains its characteristic stability, safety, and fast assembly advantages.
Key Features
1. Designed for Cuplock Scaffolding Systems
Perfectly matches Cuplock vertical posts, ledgers, and braces as a standard disc connector.
2. Strong and Durable Steel Construction
Provides stable support, high load resistance, and long service life.
3. Precision Multi-Hole Rosette Design
Ensures accurate alignment and quick locking with wedge pins.
4. Stable and Safe Joint Performance
Creates a rigid connection that enhances overall system stability.
5. Applicable to Multiple Engineering Scenarios
Ideal for high-rise buildings, bridge works, tunneling, and formwork support projects.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Scaffolding Ring Lock |
| Applicable System | Cuplock Scaffolding (Disc Scaffolding) |
| Material | High-strength steel (Q235 / Q355) |
| Disc Diameter | Common sizes: 122 mm or customized |
| Number of Holes | 8-hole standard configuration |
| Thickness | Typically 10–12 mm (varies by design) |
| Manufacturing Process | Forged or cast with precision machining |
| Surface Treatment | Hot-dip galvanizing, cold galvanizing, painting |
| Compatibility | Cuplock standards, ledgers, diagonal braces, wedge pins |
| Application Areas | Building construction, bridge decks, tunnel support, formwork systems |
